PUF/PIR Wall Panels Manufacturer in India

EPACK Prefab manufactures PUF/PIR insulated wall panels for industrial, commercial and temperature-controlled applications across India. Designed with high-performance PUF/PUR or PIR insulation cores and factory-finished metal sheets, these panels provide thermal insulation, structural performance and faster installation for modern building requirements.

Our PUF/PIR wall panels are available in multiple profiles and joint configurations, with panel thicknesses and sheet specifications selected according to the application and project requirements. They are suitable for warehouses, factories, cold rooms, cold storage facilities, clean rooms, prefabricated buildings and other insulated enclosures.

With in-house manufacturing capabilities and experience in insulated building solutions, EPACK Prefab provides PUF/PIR wall panel systems for projects requiring efficient installation, controlled indoor conditions and durable wall construction.

Get A Quote

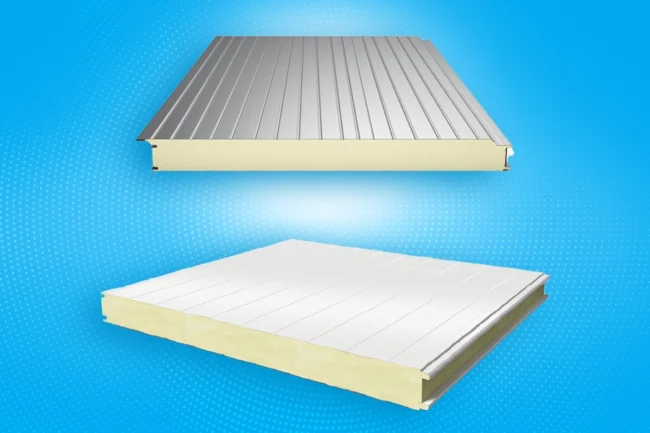

PUF/PIR wall panel profiles

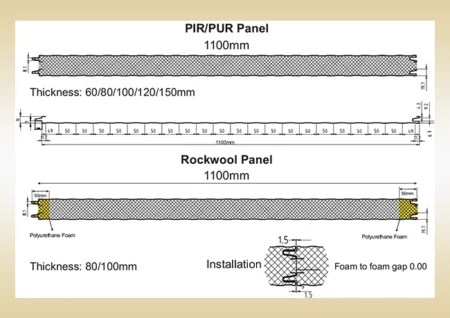

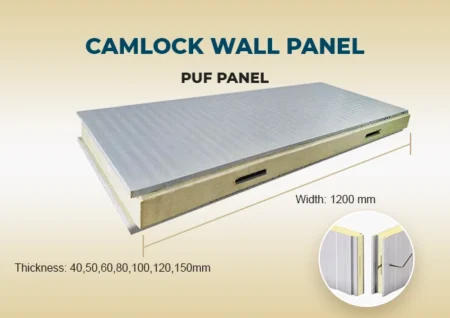

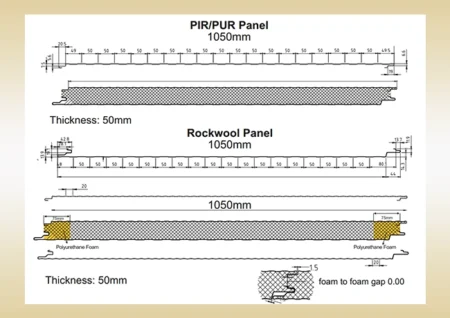

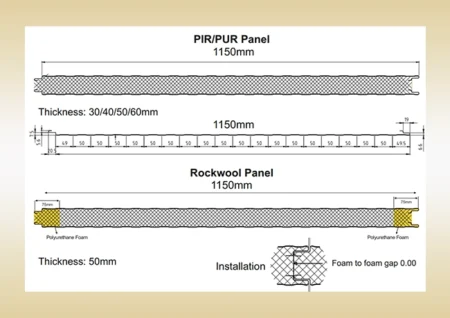

PUF/PIR Wall Panel Profiles & Joint Options

EPACK Prefab offers multiple PUF/PIR wall panel profiles and joint configurations to meet different insulation, installation, appearance and project requirements. Depending on the application, panels can be supplied in different thicknesses, widths, surface profiles and joint arrangements.

Applications of PUF/PIR Wall Panels

PUF/PIR wall panels are used in applications where thermal insulation, faster installation and controlled indoor conditions are important. Their lightweight panel construction and insulated core make them suitable for a range of industrial, commercial and temperature-controlled environments.

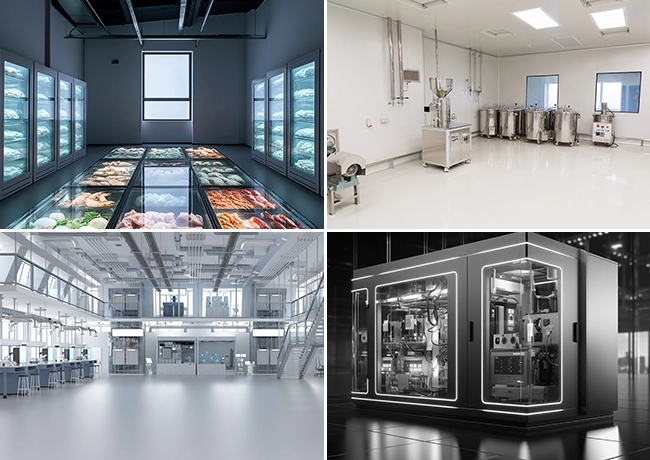

Applications of PUF/PIR Wall Cold Storage Panels
  • Industrial Buildings & Factories — insulated external and internal wall systems for manufacturing and industrial facilities.
  • Warehouses & Distribution Centres — insulated wall construction for storage and logistics facilities.
  • Cold Rooms — insulated wall systems for temperature-controlled rooms and enclosures.
  • Cold Storage Facilities — wall applications for cold-chain and temperature-controlled infrastructure.
  • Clean Rooms — insulated wall systems for controlled environments where hygiene and environmental conditions are important.
  • Prefabricated Buildings — wall systems for modular buildings, site offices and other prefabricated structures.
  • Commercial Buildings — insulated partitions and wall systems for selected commercial applications.
  • Insulated Enclosures — applications requiring an enclosed space with integrated thermal insulation.

Why Choose EPACK Prefab PUF/PIR Wall Panels?

EPACK Prefab combines more than two decades of manufacturing experience with in-house capabilities in insulated panels, prefabricated buildings and pre-engineered construction. Our PUF/PIR wall panels are manufactured for industrial, commercial and temperature-controlled applications, with specifications selected according to project requirements.

Established Manufacturing Experience

With manufacturing operations established in 1999, EPACK Prefab brings extensive experience in prefabricated and insulated building solutions.

Large-Scale Manufacturing Network

EPACK Prefab operates a network of manufacturing facilities with an annual PEB production capacity of 1,47,122 MT and sandwich panel production capacity of 13,10,000 sq. m.

Advanced Panel Manufacturing

PUF/PIR panels are manufactured using dedicated production processes designed to deliver consistent panel construction, insulation performance and finish.

Multiple Panel Configurations

Choose from different PUF/PIR wall panel profiles, joint configurations, thicknesses, sheet specifications and finishes according to the application's requirements.

Integrated Building Expertise

EPACK Prefab's expertise across PUF/PIR panels, PEB structures and prefabricated building solutions supports projects requiring integrated insulated building systems.

Quality & Environmental Management

EPACK Prefab's manufacturing systems are supported by ISO 9001:2015 and ISO 14001:2015 certifications, reflecting established quality and environmental management practices.

PUF/PIR Wall Panel Construction & Materials

PUF/PIR wall panels are factory-manufactured insulated building panels consisting of an insulation core bonded between protective metal sheets. The insulated core provides thermal resistance, while the outer sheets provide the finished surface and protect the panel during handling and service.

Depending on the project requirements, EPACK Prefab’s PUF/PIR wall panels can be specified with different core types, panel thicknesses, sheet materials, surface profiles and joint configurations. These components work together to form a lightweight, insulated wall system suitable for industrial, commercial and temperature-controlled applications.

Component Description
Insulation Core PUF/PUR or PIR insulation core, selected according to project requirements
Outer Sheets Factory-finished metal sheets forming the external and internal panel surfaces
Joint System Groove, hidden screw or camlock configurations, depending on the selected panel type
Panel Profile Standard rib, micro rib, wave rib or other available profiles, as applicable
Panel Thickness Available in different thicknesses according to application and thermal requirements
Panel Width Available widths depend on the selected panel configuration
Surface Finish Sheet coating, colour and finish can be selected according to project requirements



How PUF/PIR Wall Panels Are Constructed

PUF/PIR wall panels are manufactured as insulated composite panels, combining an insulation core with protective metal sheets to create a lightweight and thermally insulated wall system. The main components work together as follows:

1. Outer Metal Sheets
The external and internal metal sheets form the finished surfaces of the panel and protect the insulation core during handling and service.

2. PUF/PUR or PIR Insulation Core
The insulated core provides the panel’s primary thermal insulation properties and helps reduce heat transfer through the wall system.

3. Joint / Interlocking System
The selected joint configuration connects adjacent panels to create a continuous insulated wall system. EPACK offers different joint configurations depending on the panel type and project requirements.

4. Factory-Manufactured Panel
The panel components are assembled under controlled manufacturing conditions before the finished panels are delivered to the project site for installation.

PUF/PIR Wall Panel Technical Performance

PUF/PIR wall panels are designed to provide thermal insulation, structural performance and durable wall construction for industrial, commercial and temperature-controlled applications. The technical performance of the panel depends on the insulation core, panel thickness, metal-sheet specification, joint configuration and overall system design.

Property PIR Panel PUR Panel
Thermal Conductivity (K) 0.023 W/m·K 0.023 W/m·K
Compressive Strength 2.1 kg/cm² 2.1 kg/cm²
Fire Resistance Excellent Excellent
Water Absorption 0.2% 0.2%
Closed Cell Content 90–95% 90–95%

Note: Actual panel performance depends on the selected core material, panel thickness, sheet specification, joint configuration, installation quality and project conditions. Technical values should be considered with reference to the applicable product specification and test documentation.

Request a Custom Quote

Frequently Asked Questions About PUF/PIR Wall Panels

PUF/PIR wall panels are insulated sandwich panels consisting of a PUF/PUR or PIR insulation core between protective metal sheets. They are used to create lightweight insulated wall systems for industrial, commercial and temperature-controlled applications.

PUF/PIR wall panels are available in different thicknesses depending on the selected panel configuration and project requirements. The appropriate thickness can be specified based on the required thermal performance, application and building conditions.

EPACK Prefab manufactures PUF/PIR wall panels in multiple configurations, including single groove, double groove, hidden screw and camlock wall panels. Available specifications can vary according to the selected panel type and project requirements.

PUF/PIR wall panels are commonly used in warehouses, factories, industrial buildings, prefabricated structures, cold rooms, cold storage facilities, clean rooms and other applications where insulated wall construction is required.

Yes. PUF/PIR wall panels can be used for temperature-controlled applications such as cold rooms and cold storage facilities. Panel thickness, joint configuration and other specifications should be selected according to the required operating temperature, insulation requirements and project design.

Yes. PUF/PIR wall panels can be used in clean-room construction where insulated wall systems and controlled interior environments are required. Panel specifications, joint details, surface finish and installation should be selected according to the clean-room design and applicable requirements.

PUF/PUR and PIR are different insulation core options used in insulated sandwich panels. Their thermal and fire-performance characteristics can differ depending on the formulation, density, thickness, panel construction and applicable testing. The appropriate option should therefore be selected according to the project’s technical and regulatory requirements.

PUF/PIR wall panels are installed by positioning and securing the panels to the prepared building structure and connecting adjacent panels through the specified joint system. Proper alignment, fastening, joint detailing and sealing are important for achieving the intended performance of the wall system. Installation requirements vary according to the panel configuration and project design.

Yes. PUF/PIR wall panels can be specified according to project requirements, including panel thickness, core type, joint configuration, surface profile, sheet specification, colour and other available options. The final specification depends on the application and project design.

The cost of PUF/PIR wall panels depends on factors such as panel thickness, core type, sheet specification, panel profile, joint configuration, quantity, project location, transportation and installation requirements. EPACK Prefab can provide a project-specific quotation based on the required specifications and quantity.

The service life of PUF/PIR wall panels depends on factors such as the panel construction, metal-sheet coating, environmental exposure, installation quality, maintenance and operating conditions. Selecting the appropriate panel specification and following recommended installation and maintenance practices can support long-term service performance.
